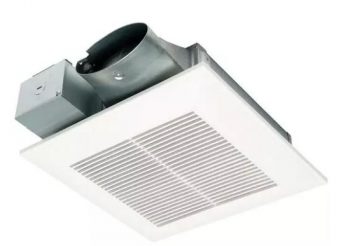

Panasonic WhisperValue® DC Pick-A-Flow®, 50-80-100 CFM

Price:$94.99

SKU: FV-0510VS1 Category:

Description


WhisperValue® DC is the lowest profile ENERGY STAR® rated ventilation fan available. Ideal for residential construction (Single; Multi-Family) and Manufactured Homes. It features Panasonic’s revolutionary ECM motor with SmartFlow™ optimum CFM technology, and incorporates a Pick-A-Flow® air flow selector switch to customize airflow (50, 80 or 100 CFM).

KEY FEATURES:

  • Precision spot ventilation fan, ideal for residential construction (single and multifamily) and manufactured homes
  • Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
  • Pick-A-Flow® Airflow Selector – one fan, you choose the CFM (50, 80 or 100 CFM)

Specifications:

SpecificationDescription
Air Volume Exhaust (CFM)50 @ 0.1″ SP, 53 @ 0.25″ SP, 80 @ 0.1″ SP, 81 @ 0.25″ SP, 100 @ 0.1″ SP, 100 @ 0.25″ SP
Master Carton Dimensions (HxWxD)6.89 x 14.25 x 16.73
CFM50-70. 80-110
Other Approved Codes and StandardsASHRAE 62.2, LEED, California Title 24, Washington VIAQ
Construction TypeSingle Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling.
Current (Amps)50 CFM= .09A, 80 CFM= .13A, 100 CFM=.20A
Ventilation Design ApproachContinuous Ventilation. Spot Ventilation
Duct Diameter4″ Oval
Energy Efficiency (CFM/Watt)50 CFM= 12.8 CFM/W, 80 CFM=11.4 CFM/W, 100 CFM = 9.2 CFM/W
ENERGY STAR® CertifiedYes
Fan TypeFan Only
Grille Size (in sq.)13″
IndustryResidential. Light Commercial
InstallationCeiling Mount, Wall Mount (UL), Tub/Shower (UL)
Motor Type (AC/DC)DC
Mounting Opening (in sq.)10-1/2″
Mounting OptionsCeiling Mount (UL). Wall Mount (UL). Tub/Shower (UL)
Noise (Sones)50 @ 0.1″ SP = < 0.3, 53 @ 0.25″ SP = 0.5, 80 @ 0.1″ SP = less than 0.4, 81 @ 0.25″ SP = 0.8, 100 @ 0.1″ SP = 0.9, 100 @ 0.25″ SP = 1.3
Power Consumption (Watts)50 CFM= 4.4W, 80 CFM= 7.2W, 100 CFM=11.1W
Power Rating (V/Hz)120/60
Product Family NameWhisperValue DC
Radiation Damper AvailableYes
UL Listed for Tub/Shower Enclosure when GFCI ProtectedYes
Warranty6 year DC Motor, 3 Year Parts
Master Carton Gross Weight (lbs.)8.82
VENTILATION ACCESSORIES:

Transfer Register Box (TRB) for WhisperValue DC™ fan and fan/light combinations (FV-JD)



4″ Oval to 3″ Round Duct Adapter (FV-VS43R)




Additional information

Weight 10 lbs
Dimensions 10.625 × 10.25 × 3.375 in
Brand

Panasonic

Documents

Spec Sheet
