Description
Product Details:

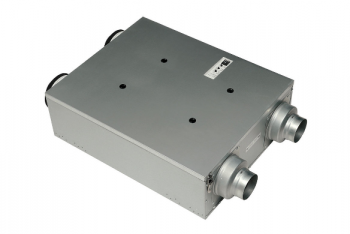

Intelli-Balance®100 is ideal for single family homes and multi-family units. It is a customizable, high performance, high efficiency Energy Recovery Ventilator (ERV) that’s designed to help you meet ASHRAE 62.2 requirements. This unique and cost effective Cold Climate ERV was engineered for total versatility and installation flexibility, in a cold climate zone. Now with Boost function, which can move the fan speed to high when activated.
Key Features:
- Occupant controllable Boost function. Moves fan speed to high when activated.
- Multi-Speed selector (50 to 100) CFM provides customizable airflow to create balanced, positive, or negative pressure within the home
- Exclusive built-in ASHRAE 62.2 timing function helps ensure code compliance
- MERV 8 filter included; optional MERV 8 and MERV 13 replacements available
- Engineered for use in any North America Climate Zone
Compatible Products:
Intelli-Balance 100 – MERV 13 Filter (FV-FL1310VE)
Intelli-Balance 100 – MERV 8 Filter (FV-FL0810VE1)
Product Specifications:
| Additional info | * Meets strict energy efficiency guidelines set by Natural Resources Canada and is ENERGY STAR certified for the Canadian market only. |
|---|---|
| Air Volume Exhaust (CFM) | 96 @ 0.1″ SP, 95 @ 0.4″ SP |
| Air Volume Supply (CFM) | 98 @ 0.1″ SP, 96 @ 0.4″ SP |
| Master Carton Dimensions (HxWxD) | 28.46″ X 12.09″ x 39.21″ |
| Duct Diameter | (4) 4″ or 6″ |
| Energy Recovery Ventilator (ERV) | Energy Recovery Ventilator (ERV) |
| ENERGY STAR® Certified | Yes* |
| Installation | Ceiling Mount and Wall Mount |
| Motor Type (AC/DC) | DC (2) DC Motors |
| Power Consumption (Watts) | 64 @ 0.1″ SP , 84@ 0.4″ SP |
| Power Rating (V/Hz) | 120/60 |
| Product Family Name | Intelli-Balance 100 |
| UL Listed for Tub/Shower Enclosure when GFCI Protected | No |
