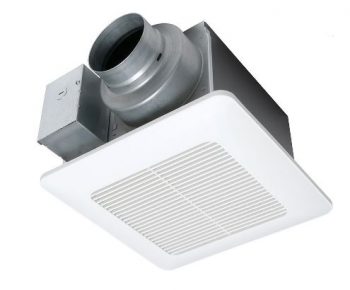

Panasonic WhisperCeiling® DC, SmartFlow 50-80-110 CFM


SKU: FV-0511VQ1 Category:


WhisperCeiling® DC™ Precision Spot Ventilation Fan with built-in Pick-A-Flow® speed selector switch allows you to select your required airflow (50-80-110 CFM). Features a ECM Motor with SmartFlow® technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.

  • Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
  • Pick-A-Flow® Speed Selector – one fan, you choose the CFM (50, 80, 110 CFM models)
  • Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
  • Lighted models incorporate one long-life, 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination
  • Elegant grille design compliments the aesthetics of any bathroom
Advanced FeaturesSingle Speed
Air Volume (CFM)110, 111, 80, 83, 50, 53
Blower Wheel TypeSirocco
California Title 24 CompliantYes
Current (Amps)0.18, 0.26, 0.11, 0.18, 0.07, 0.13
Duct Diameter4″ or 6″
Energy Efficiency (CFM/Watt)10.6, 6.9, 13.6, 7.7, 12.5, 7.4
ENERGY STAR® CertifiedYes
Grille Size (in sq.)13″
Gross Weight (lbs)11.0
MAX. Current (Amps)0.27
Mfg in ISO 9001 Certified FacilityYes
Motor Type (AC/DC)DC
Mounting Opening (in sq.)10-1/2″

Additional information

Weight 11 lbs
Dimensions 10.25 × 10.25 × 7.375 in



Spec Sheet
