Rheem Vibration Isolation Kit

The Rheem Vibration Isolation Kit is meant for installation of Heat Pump Water Heaters of 40-80 gallon sizes on non-concrete floors.

Price:$173.80

SKU: SP20883 Category:

Description

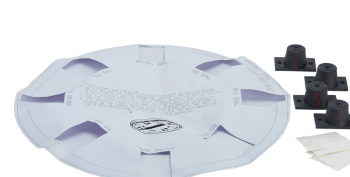

The Rheem Vibration Isolation Kit is meant for installation of Heat Pump Water Heaters of 40-80 gallon sizes on non-concrete floors. The kit will reduce noise during the water heater’s heat pump operation by minimizing and/or preventing vibrations from traveling through floor structure.

Installation Instructions

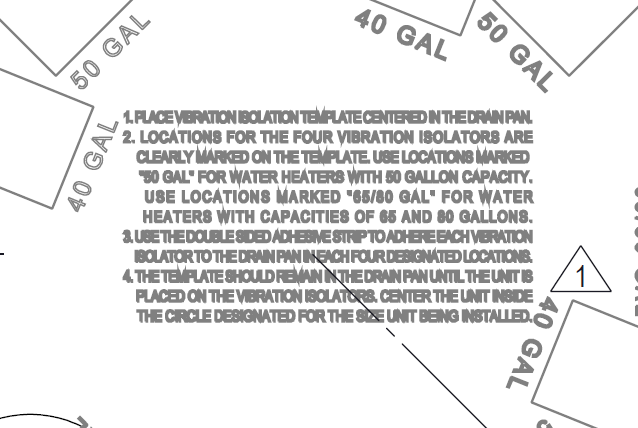

  1. Place Vibration Isolation Template centered in the drain pan
  2. Locations of the four vibration isolators are clearly marked on the template: use locations marked “50 Gal” for water heaters with 50 gallon capacity. Use locations marked “65/80 Gal” for water heaters with capacities of 65 and 80 gallons/
  3. Use the double-sided adhesive strip to adhere each vibration isolator to the drain pan in each four designated locations.
  4. The template should remain in the drain pan until the unit is placed on the vibration isolators. Center the unit inside the circle designated for the size unit being installed.

Additional information

Weight 3.2 lbs
Dimensions 12 × 12 × 9 in
Brand

Rheem

Capacity

40 Gallon, 50 Gallon, 65 Gallon, 80 Gallon

Documents

Installation Instructions
